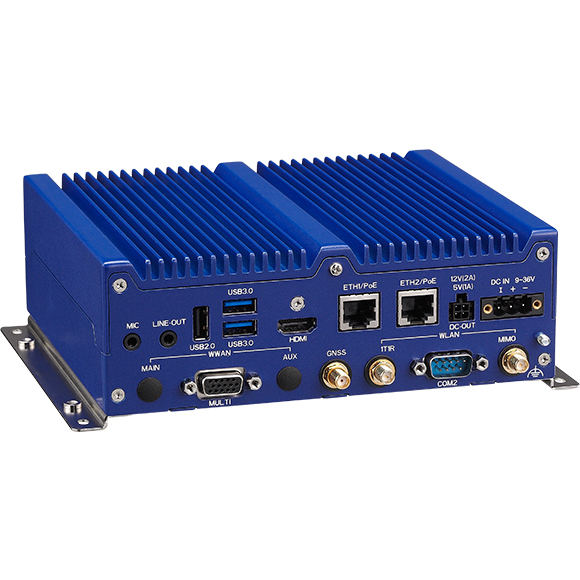

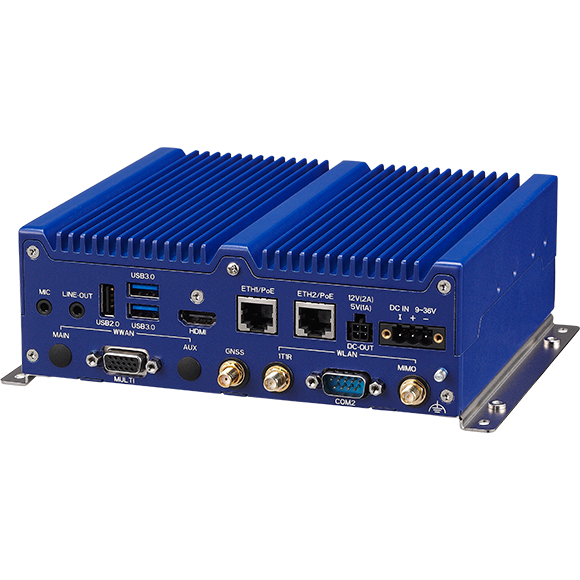

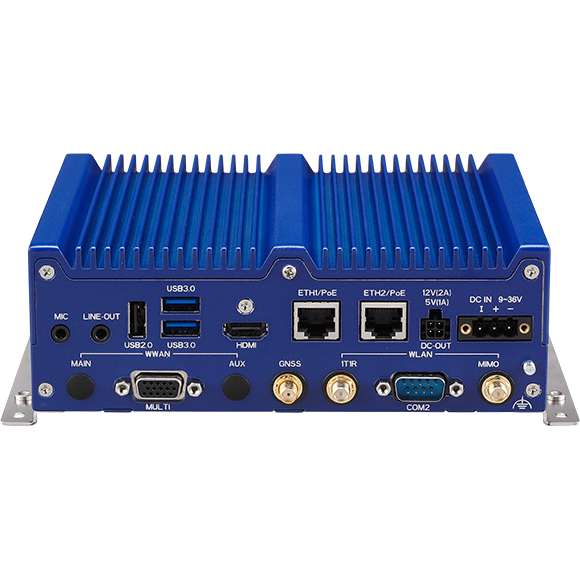

AI has become an essential component of automated vehicle technologies. With built-in high cost-effective NVIDIA® Jetson™ TX2, the rugged ATC 3200 can perform a deep learning in inference acceleration up to 1.3TFLOPS computing power suitable for in-vehicle/rolling stock applications like ANPR, ADAS, driver facial/behavior recognition even to ITS for smart city. Moreover, it also can be deployed on smart factory to expedite industrial 4.0. ATC 3200 is a compact, fanless box, which is designed with a 9~36V wide-range DC-in with IGN control, diverse I/O functions like GbE/PoE, USB 3.0, isolation CAN, serial COM, DI/DO, 12V/5V DC-OUT, specialized to an AIoT edge gateway to interface with peripheral sensors like radar, ultrasonic, LiDAR, MIPI cameras to complete an ADAS/ADS system.

To be an edge gateway, ATC 3200 can support up to three media storages, 32/16GB eMMC, SD, 2.5” SSD, and WWAN/WLAN/GNSS in expansion. Besides, it can operate in a wide temperature range of -30~70°C and withstand vibration and shock for any tough environments. For certification, ATC 3200 can meet CE/FCC classA regulation, Emark certified and compliant with EN50155.
